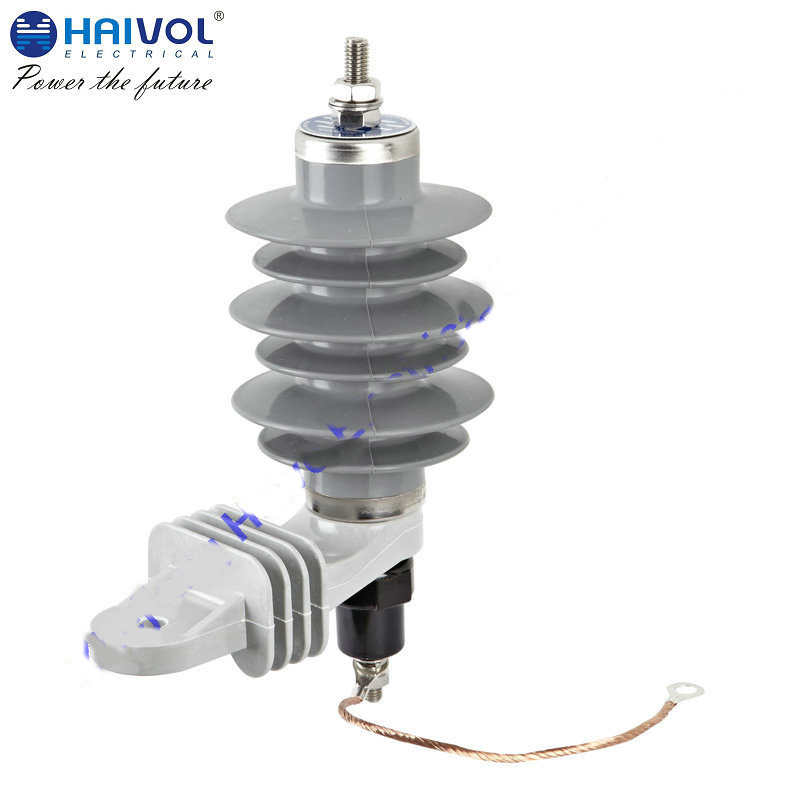

12kv metal oxide gapless lightning arrester YH5W-10

100 Pieces
MOQ
12kv metal oxide gapless lightning arrester YH5W-10
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: YH5W-10
lightning Arrester: lightning Arrester
Basis informatie
Model Number: YH5W-10
Betalen & Verzenden Algemene voorwaarden
Packaging Details: carton
Supply Ability: 30000 Piece/Pieces per Month
Productomschrijving

Polymeric Housed Surge Arrester
1.Nominal discharge current:5KA
2.Rated voltage:10KV
2..Reasonable price for all clients

metal oxide gapless 12kv lightning arrester
Application: For protecting rated voltage up to 220kV power transmission & distribution system from over-voltage.

Ratings: Up to 220kV.
Standards: IEC 60099-4

Features:
Reliability and excellent protection based on years of experience and expertise in surge protection.
Good anti-moisture capability, resistant to pollution.
GIS metal oxide surge arrester, composite metal oxide surge arrester and porcelain metal oxide surge arresters are available.
Long life and lightweight.
Easy installation and maintenance.
Good sealing capability to ensure reliable operation.
High energy absorption ability.

Product range:
Surge arresters 0.22kV~220kV

Technical Specification:

TypeMOA Rated voltage KVrms()MCOV KV(rms)Current impulse Residual Voltage2ms Rectangular current impulse withstand A(crest)4/10μs high current impulse withstand KA(crest)
1/4μs Lightning current impulse KV(crest)8/20μs Lightning current impulse KV(crest)30/60μs Switching current impulse KV(crest)
YH5W-332.5511.398.915065
YH5W-665.122.61816.815065
YH5W-997.6533.72723.815065
YH5W-10108.436302315065
YH5W-11119.440333015065
YH5W-121210.242.2362715065
YH5W-151512.7514538.515065
YH5W-181815.361.55446.215065
YH5W-21211771.86354.215065
YH5W-242419.582726215065
YH5W-272722928169.815065
YH5W-303024.4102907915065
YH5W-333327.51129986.715065
YH5W-36362912310892.415065
